2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

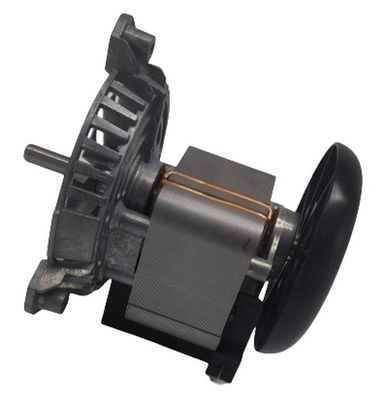

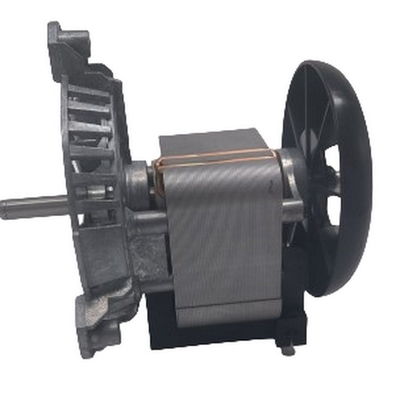

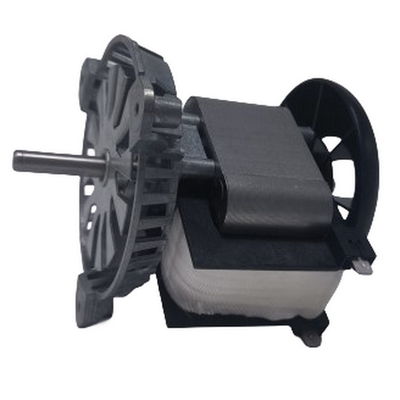

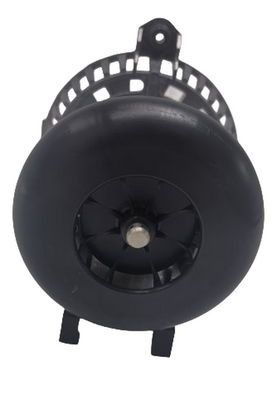

2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz

2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz
2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz

Large Image :  2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6038-38019
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz

Description
Product Name: China 2.38" 95W 240VAC C Frame Motor Dual Hz Motor Type: MH6038-38019
Rated Voltage/Frequency: 240Vac/50/60Hz Current(A): 1.1/0.86
Input Power(W): 95W Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,3mA,1s Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL/UL
Output Torque( Oz.in): 13.64 Oz.in @2258rpm Protect Method: TP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" 95W 240VAC, C Frame Motor ,AC Single Phase,DUAL HZ

China 2.38" 95W 240VAC C Frame Motor AC Shade Pole Dual Hz

The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.




 Can be customized according to customer requirements, please contanct us.





Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 0






Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure
3. Multiple shaft size options
4. Multiple installation structures
5. Independent Grounding Wire connector design
6. Application:Mechnical and fan duty


Air Volumn Curve:

2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 1
2.38" 95W 240V C Frame Electric Fan Motors Ac Shaded Pole Dual Hz 2
