2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

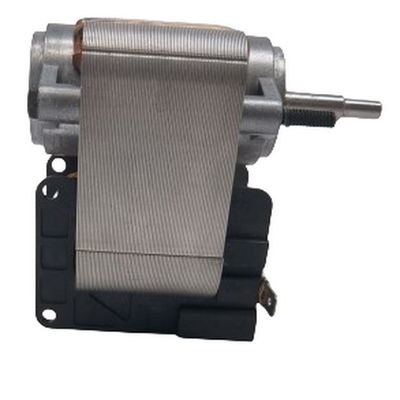

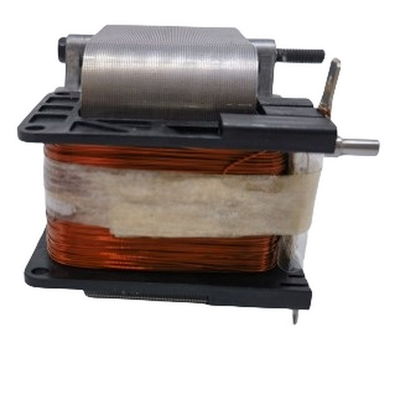

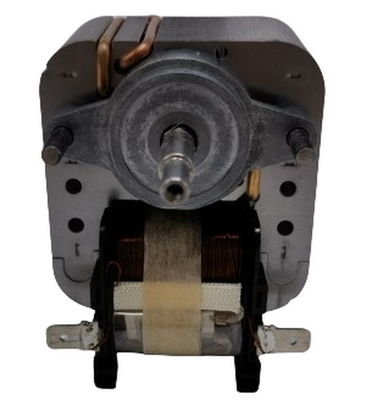

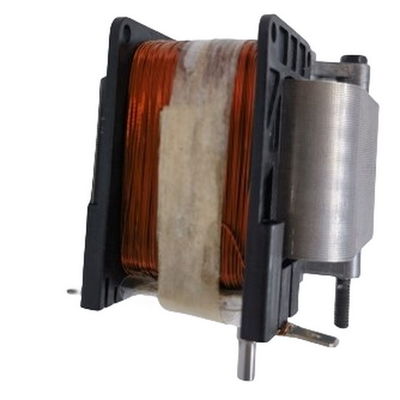

2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole

2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole
2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole 2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole 2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole 2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole

Large Image :  2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6035-35012
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole

Description
Product Name: China 2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole Motor Type: MH6035-35012
Rated Voltage/Frequency: 220Vac/50Hz Current(A): 0.64
Input Power(W): 74 Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: ETL/CE/CCC
Output Torque( Oz.in): 13 Oz.in @2200rpm Protect Method: TP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" , 74W 220V , C Frame Electric Fan Motors ,Ac Single Phase Shaded Pole

China 2.38" 74W 0.64A 220VAC C Frame Motor AC Shade Pole

The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.




Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13




Note: Can be customized according to customer requirements, please contanct us.

2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole 0



Production Feature :




1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure
3. Multiple shaft size options
4. Multiple installation structures
5.With quick connector
6. Application:Mechnical and fan duty



Air Flow Curve
2.38" 74W 220V C Frame Electric Fan Motors Ac Single Phase Shaded Pole 1


FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
