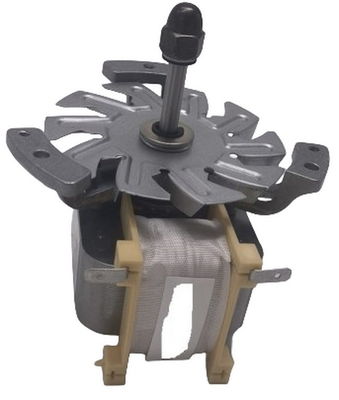

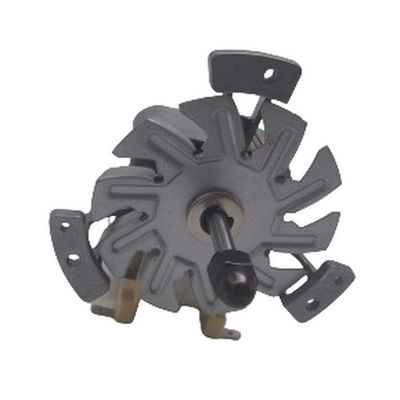

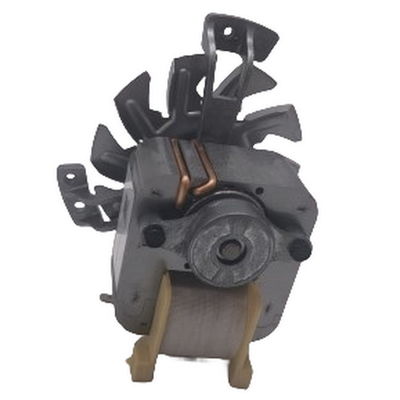

2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire

2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire
2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire

Large Image :  2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6029-29010
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire

Description
Product Name: China 2.38" 48W 120VAC C Frame Motor With Independent Grounding Wire Motor Type: MH6029-29010
Rated Voltage/Frequency: 240Vac/60Hz Current(A): 0.35
Input Power(W): 48 Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50hz,3mA,1s Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 4.09 Oz.in @2580rpm Protect Method: TP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" 48W 240VAC, C Frame Motor ,AC Single Phase, Independent Grounding Wire

China 2.38" 48W 240VAC C Frame Motor AC Shade Pole with Independent Grounding Wire

The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.




 Can be customized according to customer requirements, please contanct us.





Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240
50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 0






Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure
3. Multiple shaft size options
4. Multiple installation structures
5. Independent Grounding Wire connector design
6. Application:Mechnical and fan duty


Air Volumn Curve:

2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 1

Package Information:


    1)2 pallet stacking:2master boxes for each pallet.

       350pcs in each master box; a total of 700pcs on two stacked pallets.

  1. pallet size:1238*767*2039mm

2.38" 48W C Frame Electric Fan Motors Ac Shaded Pole with independent grounding wire 2
