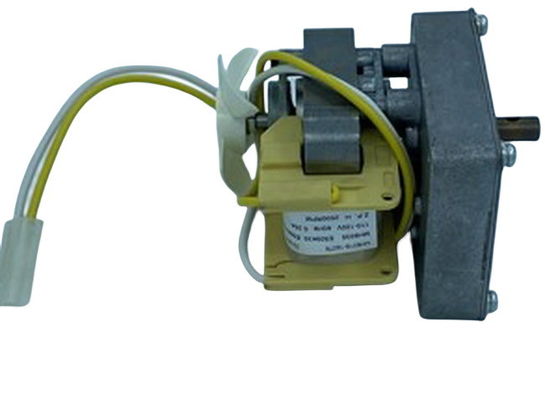

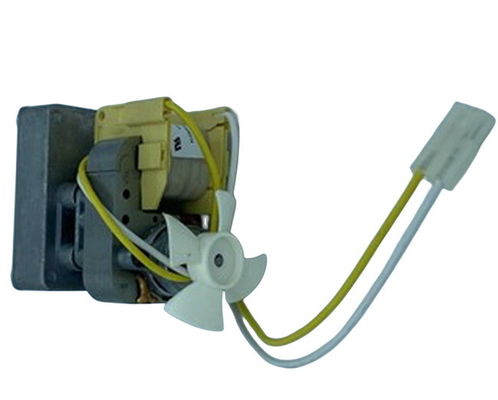

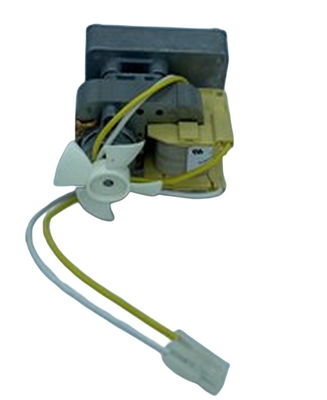

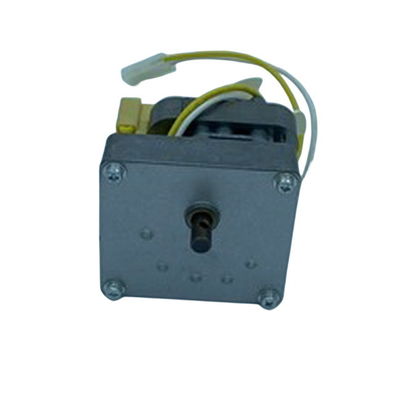

16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box

16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box
16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box 16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box 16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box 16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box

Large Image :  16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6016-16076
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box

Description
Product Name: Pellet Grill 16W 0.22A 1.6RPM Auger Motor Shade Pole Gear Box Model Type:: MH6016-16076
Rated Voltage/Frequency: 110-120V60Hz Current(A): 0.22
Input Power(W): 16 Output Speed(RPM)(W): 1.6
Output Torque(Nm): 10 Hi-Pot TEST: 1500vac50hz,1Ma,1s
Bearing Type: Sleeve Insulation Class: H
Protect Method: Z P Agency: UL/ETL
Appliction: Pellet Grill Output Torque: 10.9 Nm
High Light:

16W Pellet Auger Motor

,

Pellet Auger Motor 1.6RPM

,

0.22A shaded pole motor

Pellet Grill 16W 0.22A 1.6RPM Auger Motor Shade Pole Gear box

The Auger Motor shade pole gear box is designed for use with pellet grills. It has a rated power of 16W, 110-120VAC and the 60Hz,  the rotating speed of 1.6RPM. The motor is designed with a shade pole gear box for efficient operation and low noise. It is used to transport pellet fuel to the grill for cooking. The motor is equipped with a protective gear box to prevent contamination from dust, grease, and other pollutants. This product is widely used in residential, commercial, and industrial pellet grills.



Quick Review:



Product Name: Pellet Grill 16W 0.22A 1.6RPM Auger Motor Shade Pole Gear Box Model Type:: MH6016-16076
Rated Voltage/Frequency: 110-120V60Hz Current(A): 0.22
Input Power(W): 16 Output Speed(RPM)(W): 1.6
Output Torque(Nm): 10 Hi-Pot TEST: 1500vac50hz,1Ma,1s
Bearing Type: Sleeve Insulation Class: H
Protect Method: Z P Agency: UL/ETL
Appliction: Pellet Grill Output Torque 10.9 Nm

For detail information, please contact us for catalogue, thanks!

16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box 0

Production Description:



•  Standard performance of C-type shaded pole motor
•  Fully sealed design of the gear box rear cover to eliminate the risk of long-term oil leakage
•  The motor and gear box are assembled with four-foot end covers to improve the stability of the motor operation
•  The temperature range of the grease used in the gear box is -25℃-280℃
•  Low temperature rise design to improve the service life of the motor, with a maximum temperature rise of no more than 20k
•  Maximum output torque of 10.9Nm to improve customer experience.





Application in pellet grill




16W 0.22A Pellet Grill Pellet Auger Motor 1.6RPM Auger Motor Shade Pole Gear Box 1



Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective motors and air moving solutions for customers.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor etc... And we offer the sourcing service for other products required.
