Product Details:
|
| Product Name: | 26W 2RPM Pellet Grill Auger Motor Shade Pole With Bracket Full Sealed | Model Type：: | MH6029-29357 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50Hz | Current（A): | 0.25 |
| Input Power（W）: | 26W | Output Speed（RPM)（W）: | 2.0 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | Sleeve |
| Insulation Class: | B | Protect Method: | Z P |
| Agency: | ETL/CE/CCC | Appliction: | Pellet Grill |
| High Light: | 26W Pellet Auger Motor,2RPM Pellet Auger Motor,shade pole motor 26W |
||

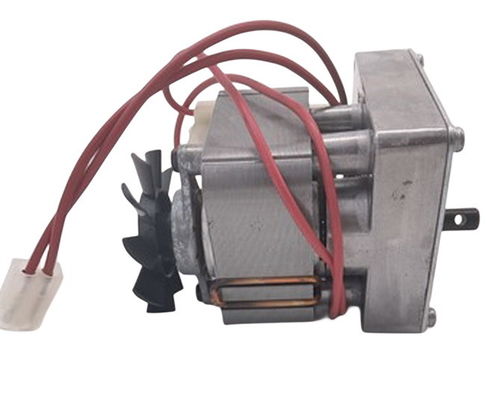

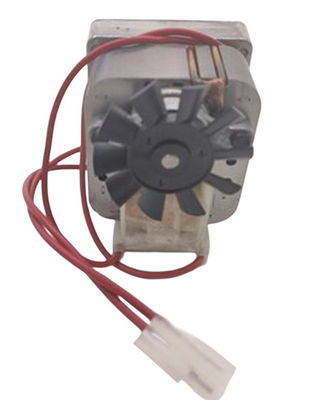

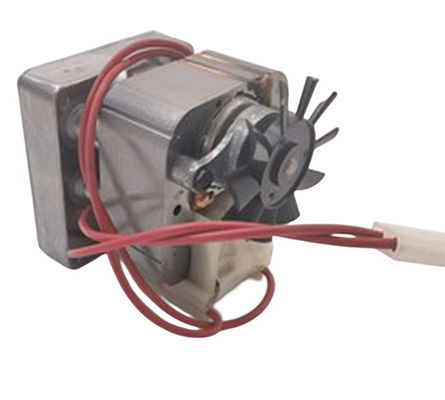

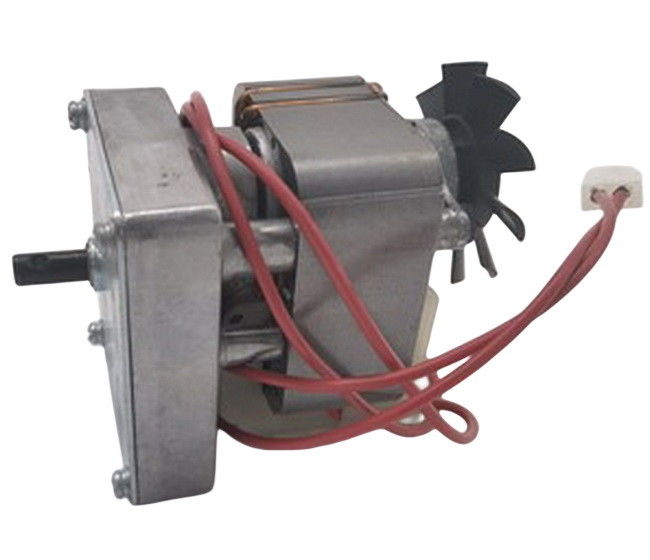

26W 2RPM Pellet Grill Auger Motor Shade Pole with bracket full sealed
Product Description:
1. Standard performance of type C covered pole motor
2. The rear cover of the gearbox is fully sealed to prevent long-term oil leakage
3. The motor and gearbox are equipped with four-pin end cover to improve the stability of the motor
4. Operating temperature range of grease in gear box: -25℃-280℃
5. Low temperature rise design, improve motor service life
6. Self-cooling fan design to extend motor service life
Quick Review:
| Product Name: | 26W 2RPM Pellet Grill Auger Motor Shade Pole With Bracket Full Sealed | Model Type:: | MH6029-29357 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50Hz | Current(A): | 0.25 |
| Input Power(W): | 26W | Output Speed(RPM)(W): | 2.0 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | Sleeve |
| Insulation Class: | B | Protect Method: | Z P |
| Agency: | CCC/ETL/CE | Appliction: | Pellet Grill |
For detail information, please contact us for catalogue, thanks!
Typically used in Pellet Grill
