Product Details:
|
| Product Name: | 2.38" C Frame Motor High:95W LOW:25W 120VAC Single Phase Shade Pole UL Agency | Motor Type: | MH6038-38502 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current（A): | High:1.6A;lOW:0.4A |
| Input Power（W）: | High:95;lOW:25 | Output Speed（RPM): | 3000/2000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | LOAD TORQUE:: | HIGH:8.75On.IN@3000rpm;Low:1.95On.IN@2000rpm; |
| START VOLTAGE: | 71V60Hz | Protect Method: | TP |
| Agency: | UL | Application: | AIR COOLING FAN |
| High Light: | 2.38" C Frame Motor, High:95W LOW:25W 120VAC, Single Phase Shade Pole, UL Agency | ||
| High Light: | 25W C Frame Motors,95W C Frame Motors,120VAC shaded pole motor |
||

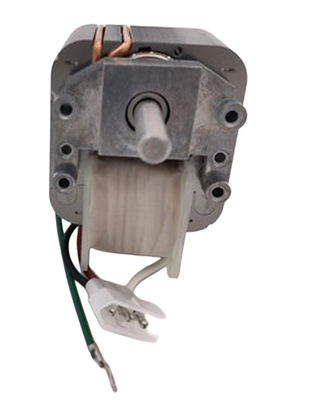

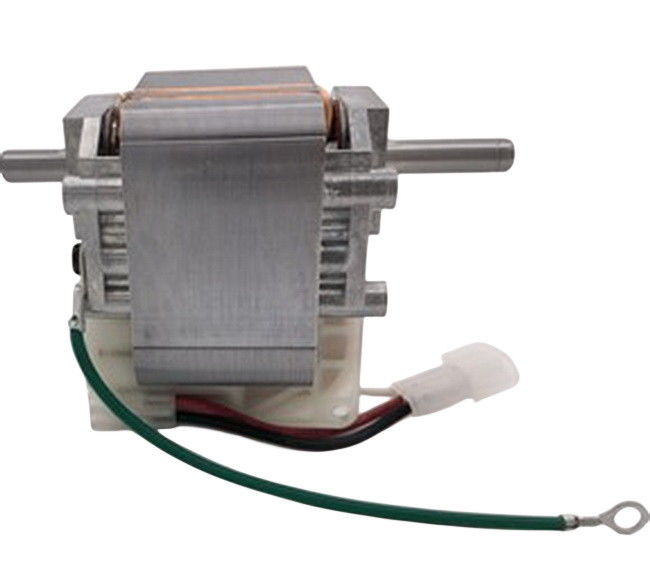

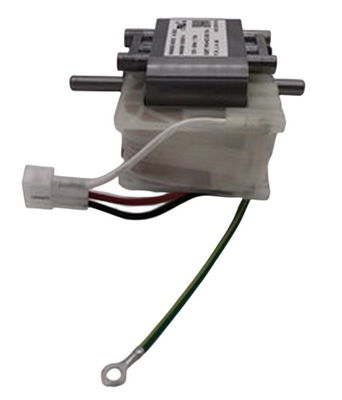

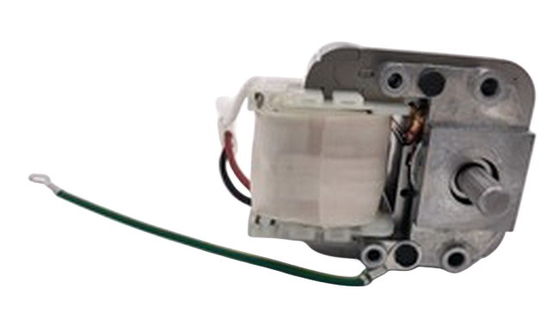

2.38" C Frame Motor High:95W LOW:25W 120VAC Single Phase Shade Pole UL Agency
The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.
Quick Review:
| Product Name: | 2.38" C Frame Motor High:95W LOW:25W 120VAC Single Phase Shade Pole UL Agency | Motor Type: | MH6038-38502 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | High:1.6A;lOW:0.4A |
| Input Power(W): | High:95;lOW:25 | Output Speed(RPM): | 3000/2000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | LOAD TORQUE:: | HIGH:8.75On.IN@3000rpm;Low:1.95On.IN@2000rpm; |
| START VOLTAGE: | 71V60Hz | Protect Method: | TP |
| Agency: | UL | Application: | AIR COOLING FAN |
Note: Can be customized according to customer requirements, please contanct us.
Production Feature :
1. 2.38’’ C-FRAME MOTOR
2. Heavy-duty steel and die-cast construction
3. Several shaft size options
4. Several mounting options available
5. Several lead configurations available
6. Ball bearing or Sleeve bearing available
7. Double speed design
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
