Product Details:
|
| Product Name: | 47W 0.50A 2.38" C Frame Motor AC Single Phase Shade Pole For Pump | MH MODEL: | MH6029-29184 |
|---|---|---|---|
| Rated Voltage/Frequency: | 230V50hz | Current（A): | 0.5 |
| Input Power（W）: | 47 | Output Speed（RPM): | 3000 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Agency: | ETL/CE/CCC |
| Application: | Air Conditioning Condensate Pump, Circulation Mixer. | Protect Method: | TP |
| High Light: | 47W shaded pole fan motor,0.50A shaded pole fan motor,shaded pole ac motor 2.38 inch |
||

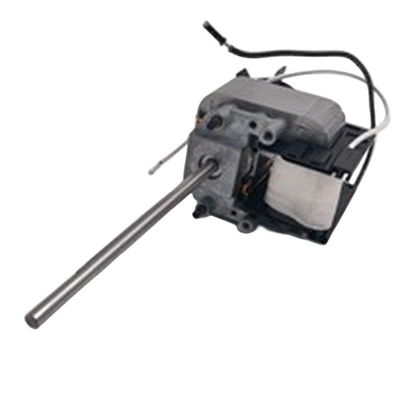

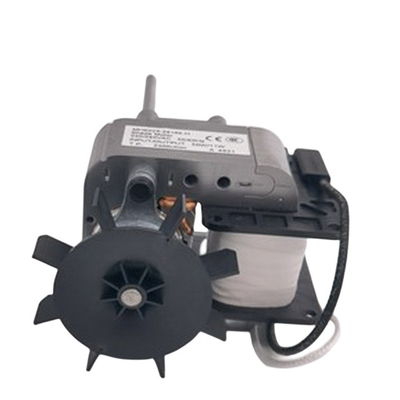

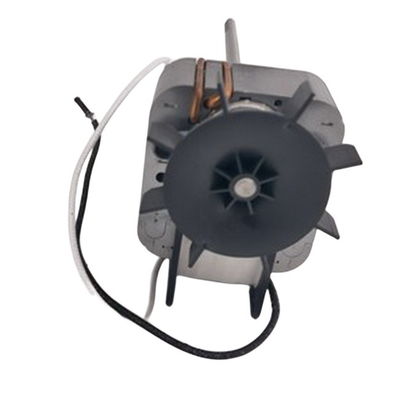

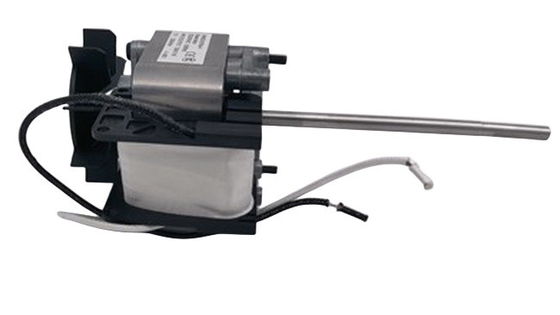

China 47W 0.50A 2.38" C Frame Motor AC Single Phase Shade Pole for pump
The motor is specifically designed for pump applications and can be used to aircondition condensate pumps or other types of pumps. The motor operates on single-phase AC power. It can be directly connected to a single-phase AC power supply, typically using standard household or commercial power.
Specification:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 21.88(7/8) | 110-120V/220-240V | 50/60 | 3000 | 7.5 | 1/45 |
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Note: Listed are representative only for reference, can be customized according to customer requirements
Production Feature :
1. 2.38’’ C-FRAME MOTOR
2. Heavy-duty steel and die-cast construction
3. Several shaft size options
4. Several mounting options available
5. Several lead configurations available
6. Ball bearing or Sleeve bearing available
7. Cooling fan for motor design, long lasting
Performance Curve:
Main Appilication:
Air conditioning condensate pump
Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
