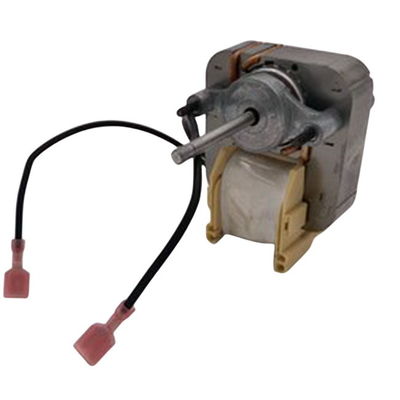

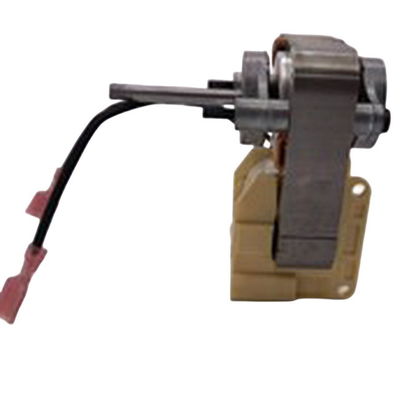

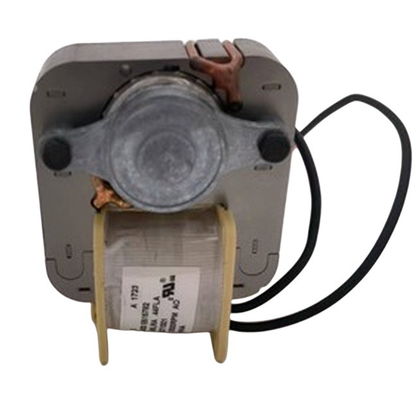

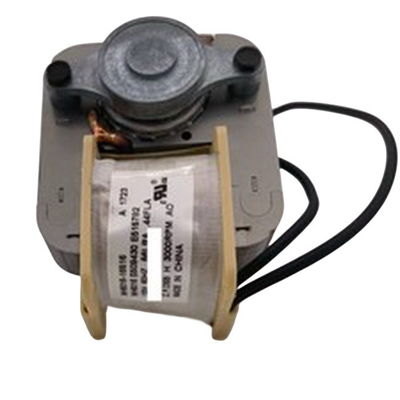

2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC

2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC
2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC

Large Image :  2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6016-16516
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC

Description
Product Name: China 2.38" 27W 0.44A 120VAC C Frame Motor AC Single Phase Shade Pole Motor Type: MH6016-16516
Rated Voltage/Frequency: 120Vac/60Hz Current(A): 0.27
Input Power(W): 27 Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: UL/ETL
Output Torque( Oz.in): 3.0 Protect Method: ZP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" 27W 0.44A 120VAC, C Frame Motor ,AC Single Phase, Shade Pole
High Light:

2.38in shaded pole type motor

,

27W shaded pole type motor

,

c frame shaded pole fan motor

China 2.38" 27W 0.44A 120VAC C Frame Motor AC Single Phase Shade Pole


The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.


Quick Review:

roduct Name: China 2.38" 27W 0.44A 120VAC C Frame Motor AC Single Phase Shade Pole Motor Type: MH6016-16516
Rated Voltage/Frequency: 120Vac/60Hz Current(A): 0.44
Input Power(W): 27 Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: UL/ETL
Output Torque( Oz.in): 3.0 Protect Method: ZP



Note: Can be customized according to customer requirements, please contanct us.
2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 0
Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Single-phase AC motor, available in 208-240V, 110-120V, 50/60Hz
3. Zinc die-cast structure
4. Multiple shaft size options
5. Multiple installation structures
6.Multiple power connection structures
7. Application:Mechnical and fan duty

2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 1


Torque Curve
2.38" 27W C Frame Shaded Pole Fan Motor Shaded Pole Type 0.44A 120VAC 2


FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
