49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor

49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor
49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor 49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor 49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor 49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor

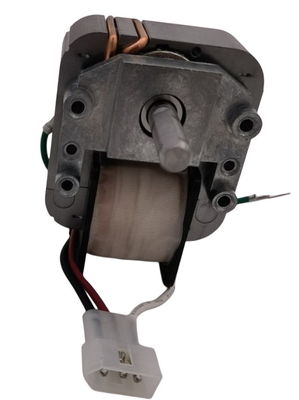

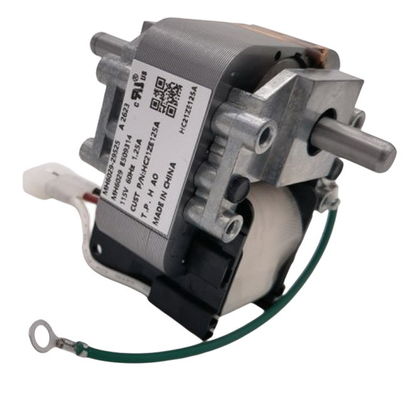

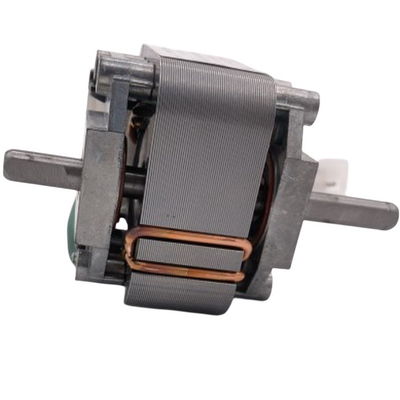

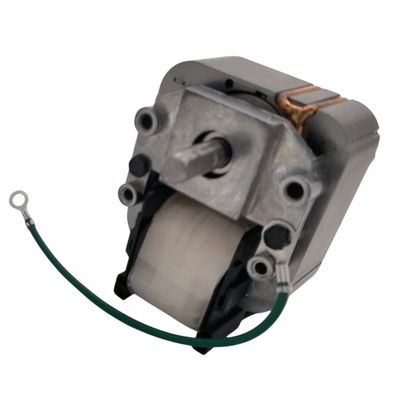

Large Image :  49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6029-29525
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor

Description
Product Name: 2.38" 49W 0.81A C Frame Motor Dual Extension Shaft AC Single Phase Shade Pole Motor Type: MH6029-29525
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 0.81
Input Power(W): 49 Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: UL/ETL
Output Torque( IN.LBS)): 2.3 Protect Method: TP
Application: MECHANICAL AND FAN DUTY APPLICATIONS High Light: China 2.38" 49W 0.81A, C Frame Motor , Dual Extension Shaft , AC Single Phase, Shade Pole
High Light:

49W C Frame Motors

,

0.81A C Frame Motors

,

AC shaded pole ac gear motor

China 2.38" 49W 0.81A C Frame Motor dual extension shaft AC Single Phase Shade Pole


The C frame motor is equipped with a dual extension shaft, providing flexibility in applications where multiple shafts are required. It can be used in various applications that require a small motor size, moderate power consumption, and reliable operation.

Quick Review:

roduct Name:2.38" 49W 0.81A C Frame Motor dual extension shaft AC Single Phase Shade PoleMotor Type:MH6029-29525
Rated Voltage/Frequency:115Vac/60HzCurrent(A):0.81
Input Power(W):49Output Speed(RPM):3000
Hi-Pot TEST:1500vac50hz,1Ma,1sBearing Type:NMB Ball bearing
Insulation Class:HAgency:UL/ETL
OutputTorque( in-lbs):2.3Protect Method:TP


Note: Can be customized according to customer requirements, please contanct us.
49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor 0
Production Feature :

1. 2.38" Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure Multiple shaft size options
3. Multiple installation structures
4. Quick-connect terminal connection
5. Optional wire structure connection
6. Independent ground wire terminal design
7. Dual shaft design.
8. Application:Mechnical and fan duty



Air Flow Curve
49W 0.81A C Frame Motors Dual Extension Shaft AC Single Phase Shaded Pole Ac Gear Motor 1

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
