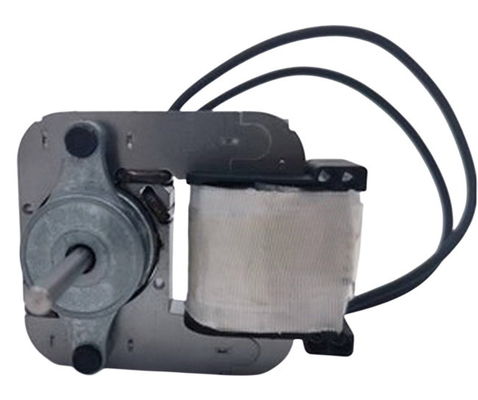

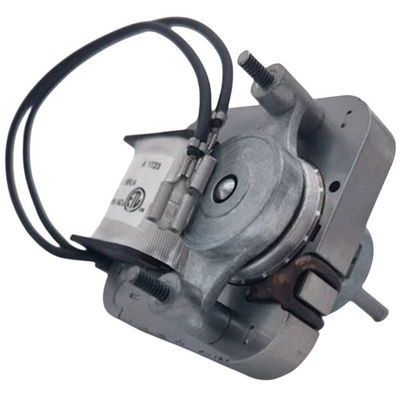

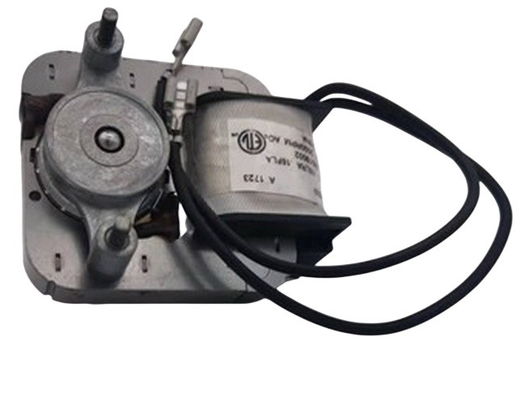

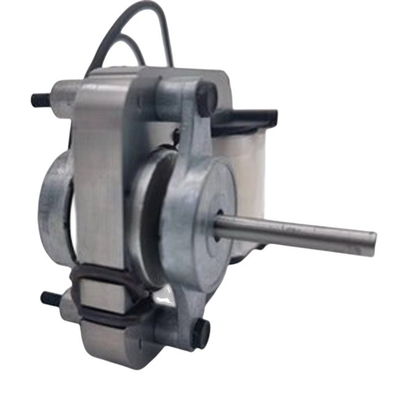

17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase

17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase
17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase 17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase 17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase 17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase

Large Image :  17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6010-10523
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase

Description
Product Name: China 2.38" 17W 0.16A 240VAC C Frame Motor AC Single Phase Shade Pole Motor Type: MH6010-10523
Rated Voltage/Frequency: 240Vac/60Hz Current(A): 0.16
Input Power(W): 17 Output Speed(RPM): 2500
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 2.3 Protect Method: ZP
High Light: China 2.38" 17W 0.16A 240VAC, C Frame Motor ,AC Single Phase, Shade Pole Application: MECHANICAL AND FAN DUTY APPLICATIONS
High Light:

0.16A shaded pole motor fan

,

240VAC shaded pole motor fan

,

17W c frame fan motor

China 2.38" 17W 0.16A 240VAC C Frame Motor AC Single Phase Shade Pole

The motor is constructed using efficient electrical steel, which helps improve motor efficiency, reduce energy consumption, and enhance performance. It can be used in various applications that require a small motor size, low power consumption, and efficient performance.


Quick Review:

roduct Name:China 2.38" 17W 0.16A 240VAC C Frame Motor AC Single Phase Shade PoleMotor Type:MH6010-10524
Rated Voltage/Frequency:240Vac/60HzCurrent(A):0.16
Input Power(W):17Output Speed(RPM):2500
Hi-Pot TEST:1500vac50hz,1Ma,1sBearing Type:SLEEVE BEARING
Insulation Class:HAgency:ETL
Output Torque( Oz.in):2.3Protect Method:ZP



Note: Can be customized according to customer requirements, please contanct us.
17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase 0
Production Feature :


1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Single-phase AC motor, available in 208-240V, 110-120V, 50/60Hz
3. Zinc die-cast structure
4. Multiple shaft size options
4. Multiple installation structures
5. Wire crimping quick-connect terminal structure.
6. Application:Mechnical and fan duty



Air Flow Curve
17W 0.16A 240VAC C Frame Fan Motor Shaded Pole Motor Fan AC Single Phase 1

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
