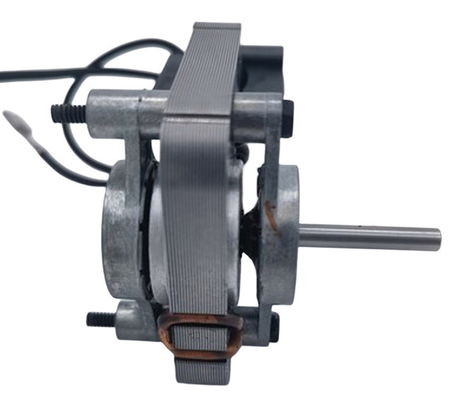

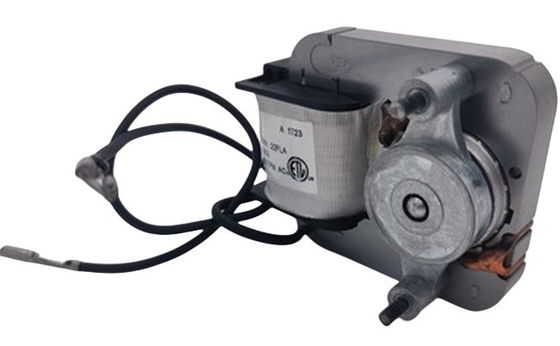

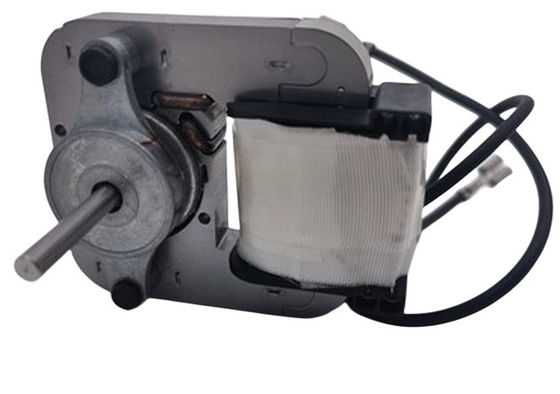

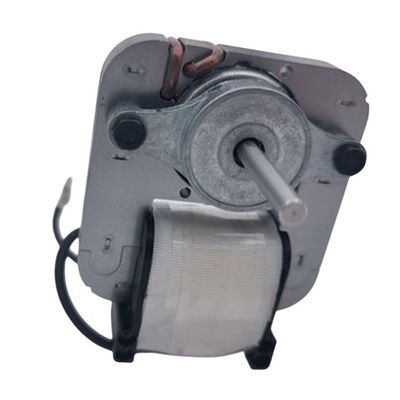

20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase

20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase
20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase 20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase 20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase 20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase

Large Image :  20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6010-10524
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 3000PCS/day

20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase

Description
Product Name: China 2.38" 20W 0.22A 208VAC C Frame Motor AC Single Phase Shade Pole Motor Type: MH6010-10524
Rated Voltage/Frequency: 208Vac/60Hz Current(A): 0.22
Input Power(W): 20 Output Speed(RPM): 2500
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 2.3 Protect Method: ZP
High Light: China 2.38" 20W 0.22A 208VAC, C Frame Motor ,AC Single Phase, Shade Pole Application: MECHANICAL AND FAN DUTY APPLICATIONS
High Light:

0.22A C Frame Motors

,

208VAC C Frame Motors

,

shaded pole electric motor 60Hz

China 2.38" 20W 0.22A 208VAC C Frame Motor AC Single Phase Shade Pole



This motor can be used in various applications that require low power and compact dimensions, such as fans, pumps, and small appliances.

With a sleeve bearing, which provides smooth and reliable operation.



Quick Review:

roduct Name: China 2.38" 20W 0.22A 208VAC C Frame Motor AC Single Phase Shade Pole Motor Type: MH6010-10524
Rated Voltage/Frequency: 208Vac/60Hz Current(A): 0.22
Input Power(W): 20 Output Speed(RPM): 2500
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: SLEEVE BEARING
Insulation Class: H Agency: ETL
Output Torque( Oz.in): 2.3 Protect Method: ZP





Note: Can be customized according to customer requirements, please contanct us.

20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase 0

Production Feature :



1. 2.38-inch Efficient Electrical Steel C-FRAME Motor
2. Single-phase AC motor, available in 208-240V, 110-120V, 50/60Hz
3. Zinc die-cast structure
4. Multiple shaft size options
4. Multiple installation structures



Air Flow Curve

20W 0.22A 208VAC C Frame Motors Shaded Pole Electric Motor AC Single Phase 1

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
