Product Details:
|
| MH MODEL: | MH6019-19025 | Product Name: | 40W 0.38A AC Hot Air Oven Fan Pellet Stove Shaded Pole Motor |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current（A): | 0.38 |
| Input Power（W）: | 40W | Speed（RPM): | 1800 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Pellet Stove |
| High Light: | Hot Air Oven Air , Ac Shade Pole Motor ,230V 50HZ 40W 0.38A | ||
| High Light: | 40W wood burning stove air circulation,0.38A wood burning stove air circulation,ETL pellet stove air circulation |
||

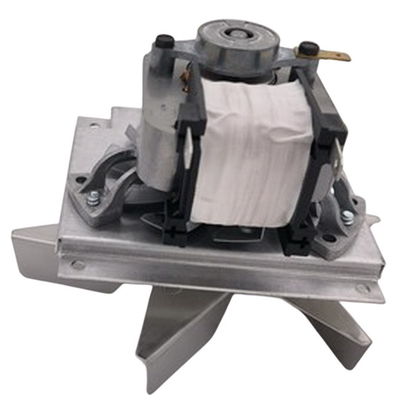

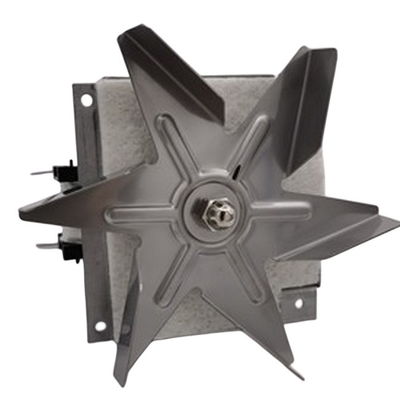

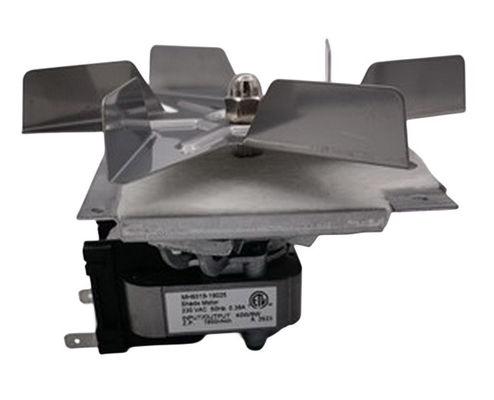

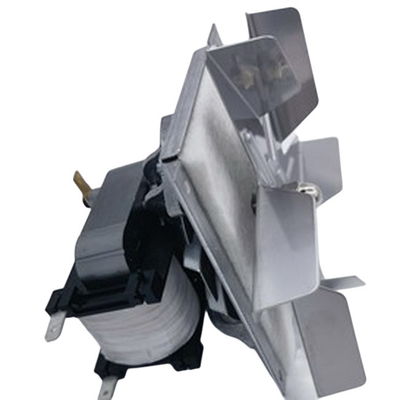

40W 0.38A AC Hot Air Oven fan Pellet Stove shaded pole motor
This motor is specifically designed for use in hot air ovens and pellet stoves, where it can drive the fan that circulates hot air or controls the pellet feeding mechanism. It is used to drive the fan in hot air ovens, ensuring efficient circulation of hot air, or in pellet stoves, controlling the distribution of pellets for combustion. The motor is capable of delivering the required power and performance for its intended application, providing reliable operation.
Quick Review:
| MH MODEL: | MH6019-19025 | Product Name: | 45W 0.4A AC Shaded Pole Motor For Room Heating Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.38 |
| Input Power(W): | 40W | Speed(RPM): | 1800 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Pellet Stove |
Can be customized , please contact us to get more information
Production Feature:
1. Plug and play
2. Mature and reliable shaded pole motor technology
3. Heat-resistant fan made of stainless steel
4. Motor assembly mounted on a metal disc outside the oven for easy installation
6. High-temperature resistant NMB ball bearing design
7. Independent thermal insulation design to enhance motor lifespan
8. Multiple shaft sizes are available for selection.
9. Multiple motor performance options are available.
10. Optional higher efficiency 3.3 motor performance can be chosen.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
