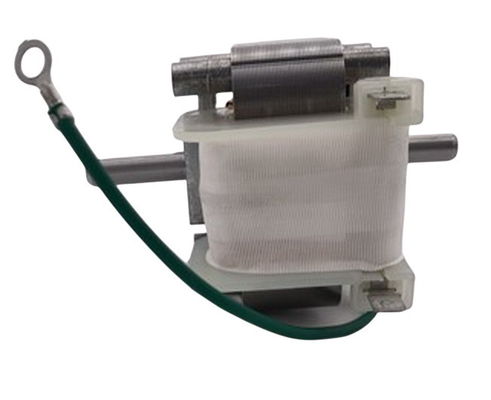

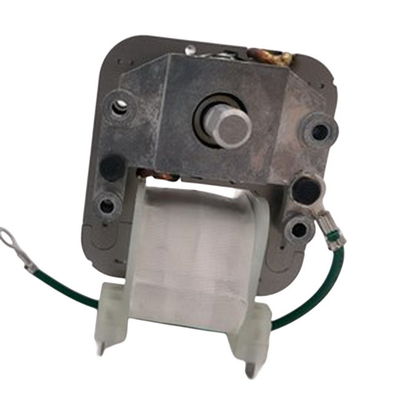

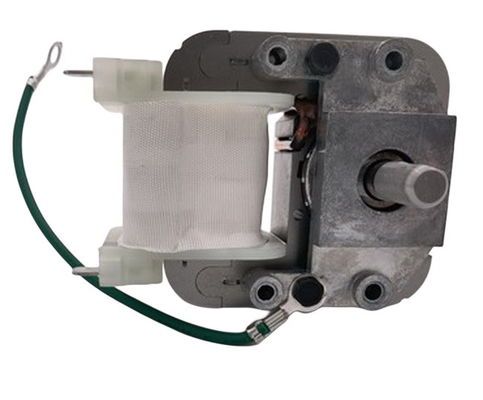

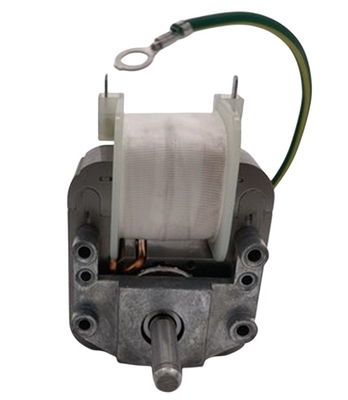

ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan

ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan
ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan

Large Image :  ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6022-22250
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan

Description
Product Name: China 2.38" 49W 0.81A 115VAC C Frame Motor AC Single Phase Shade Pole Rated Voltage/Frequency: 115Vac/60Hz
Current(A): 0.81 Input Power(W): 49
Output Speed(RPM): 3000 Hi-Pot TEST: 1500vac50hz,1Ma,1s
Bearing Type: NBM Ball Bearing Insulation Class: H
Agency: ETL Application: MECHANICAL AND FAN DUTY APPLICATIONS
Protect Method: TP Output Torque(in-lbs)): 2.3
High Light: China 2.38" 49W 0.81A 115VAC, C Frame Motor ,AC Single Phase, Shade Pole
High Light:

ETL shaded pole exhaust fan

,

49W shaded pole exhaust fan

,

c frame electric motor 115VAC

China 2.38" 49W 0.81A 115VAC C Frame Motor AC Single Phase Shade Pole



This C frame motor has a compact size with a width of 2.38 inches, making it suitable for applications with limited space. It is a single-phase AC motor with a shaded pole design, known for its simple structure and lower cost.



The motor is manufactured using high-efficiency electrical steel material, which possesses excellent magnetic conductivity and low magnetic loss. This material helps improve the motor's efficiency and performance.



Product Data Sheet:



Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120 50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements





ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan 0



Production Feature :



1. 2.38-inch High-Efficiency Electrical Steel C-FRAME Motor
2. Zinc Pressure Die-Cast Structure
3. Multiple Shaft Size Options
4. Multiple Mounting Structures
5. Quick-Connect Terminal Connection
6. Optional Wire Structure Connection
7. Independent Ground Wire Terminal Design



Air Flow Curve

ETL 49W C Frame Electric Motor 0.81A 115VAC AC Single Phase Shade Pole Exhaust Fan 1
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.




FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
