Product Details:
|
| MH MODEL: | MH6029-29069 | Product Name: | AC 55W 0.5A Hot Air Oven Fan Long Shaft Design For Oven Or Lab Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current（A): | 0.5A |
| Input Power（W）: | 55 | Speed（RPM): | 2300 |
| Hi-Pot TEST: | 1800vac50Hz,3mA,1S | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Agency: | CE/CCC/ETL | Application: | Oven, Lab Equipment |
| High Light: | AC Shade Poole Motor , 55W 0.5A Hot Air Oven, Long Shaft Design ,oven Or Lab Equipment | ||
| High Light: | 55W Hot Air Oven Fan,0.5A Hot Air Oven Fan,55W long shaft motor For Oven |
||

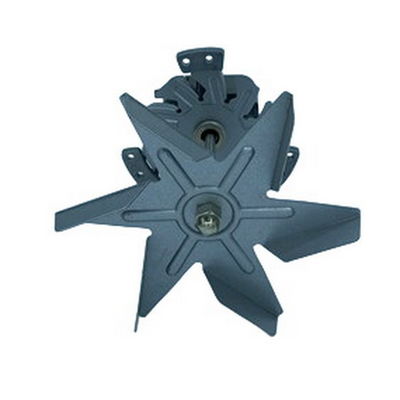

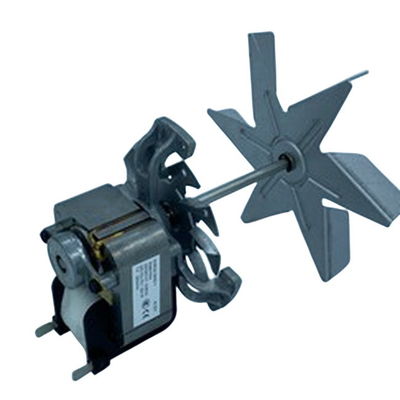

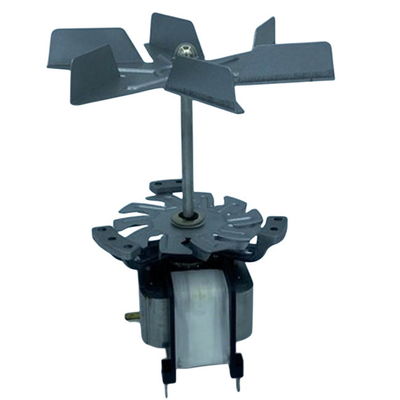

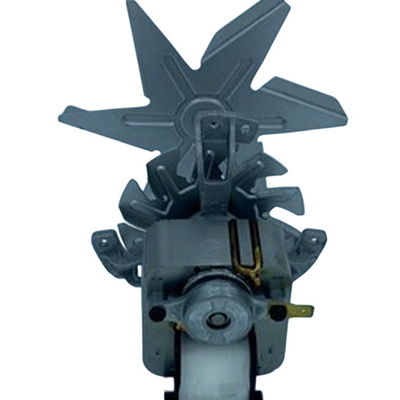

AC 55W 0.5A hot air oven fan long shaft design for oven or lab equipment
The hot air fan is designed to be used in hot air ovens. Hot air ovens are commonly used in laboratories and industrial settings for various applications such as drying, sterilization, and heat treatment. The fan assists in circulating the hot air within the oven, ensuring uniform temperature distribution. As well, with a long shaft design which allows the fan motor to be located outside the oven or lab equipment while the fan blades extend inside. It helps to prevent the heat generated by the oven from affecting the motor, ensuring reliable operation.
Quick Review:
| MH MODEL: | MH6029-29069 | Product Name: | AC 55W 0.5A Hot Air Oven Fan Long Shaft Design For Oven Or Lab Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.5A |
| Input Power(W): | 55 | Speed(RPM): | 2300 |
| Hi-Pot TEST: | 1800vac50Hz,3mA,1S | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Agency: | CE/CCC/ETL | Application: | Oven, Lab Equipment |
Can be customized , please contact us to get more information
Production Feature:
• Plug and play
• Proven and reliable shaded pole motor technology
• Heat-resistant fan made of hot-dip aluminum-coated steel or stainless steel
• Operating temperature range of 120 – 500℃
• High-temperature resistant ball bearing design for low noise and long lifespan
• Extended Shaft Size for Compatibility with Higher Temperature Equipment
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
