Product Details:
|
| MH MODEL: | MH6038-38052 | Product Name: | 60W 0.55A 230V High Air Volumn Hot Air Oven Fan For Drying Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50HZ | Current（A): | 0.55 |
| Input Power（W）: | 60W | Speed（RPM): | 2200 |
| Hi-Pot TEST: | 1800Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Application: | Stove; Pellet Stove,drying Oven | Agency: | ETL/CE/CCC |
| High Light: | Hot Air Oven Air ,60W 0.55A High Air Volumn Hot Air Oven Fan ,drying Oven | ||
| High Light: | 60W pellet stove room blower fan,0.55A pellet stove room blower fan,pellet stove fan 50HZ |
||

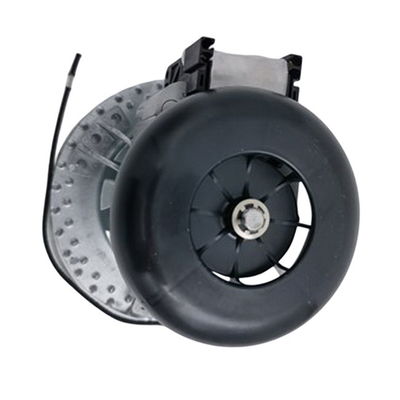

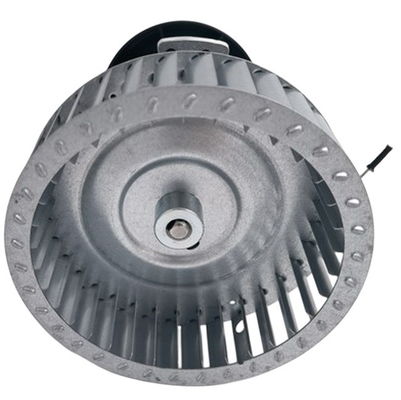

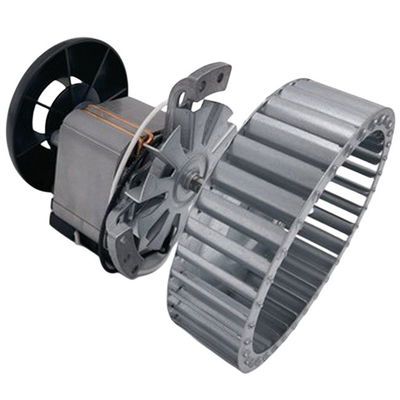

60W 0.55A 230V High air volumn hot air oven fan for Drying Oven
This hot air pellet oven fan is designed to deliver a high volume of air, making it suitable for applications such as pellet stoves and hot air ovens, where air circulation and heat dissipation are important.
The oven fan is providing the necessary airflow to ensure efficient combustion and uniform distribution of hot air.
Quick Review:
| MH MODEL: | MH6038-38052 | Product Name: | 60W 0.55A 230V High Air Volumn Hot Air Oven Fan For Drying Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50HZ | Current(A): | 0.55 |
| Input Power(W): | 60W | Speed(RPM): | 2200 |
| Hi-Pot TEST: | 1800Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Application: | Stove; Pellet Stove,drying Oven | Agency: | ETL/CE/CCC |
Can be customized , please contact us to get more information!
Production Feature:
1. High-temperature wire connections.
2. High-temperature resistant centrifugal impeller, high air volume, low noise.
3. High-temperature resistant ball bearings: NMB BALL BEARING.
4. Dual cooling fan design helps to lower the operating temperature of the bearings and improve the product's lifespan.
5. Due to the dedicated bearing support, the motor can be mounted externally to the equipment, preventing overheating of the blower or the corresponding drive motor.
6. Mature and reliable shaded pole motor technology, suitable for various high-temperature environments.
7. High-quality electrical steel and zinc die-cast structure ensure the stability of the product.
The main application:
High air volume, efficient blower fan, typically used in large-volume air blast drying ovens.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
