Product Details:
|
| MH MODEL: | MH6035-35422 | Product Name: | 50W 0.75A High Air Volumn Pellet Stove Hot Air Oven Fan UL Agency |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60HZ | Current（A): | 0.75 |
| Input Power（W）: | 50W | Speed（RPM): | 2800 |
| Hi-Pot TEST: | 1500Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Wind Speed(m/s): | 12 | Air Volume（CFM): | 130 |
| Application: | Stove; Pellet Stove | Agency: | UL |
| High Light: | Hot Air Oven Air ,50W 0.75A High Air Volumn Pellet Stove, Hot Air Oven Fan ,UL Agency | ||
| High Light: | 50W Hot Air Oven Fan,0.75A Hot Air Oven Fan,pellet stove fan 130CFM |
||

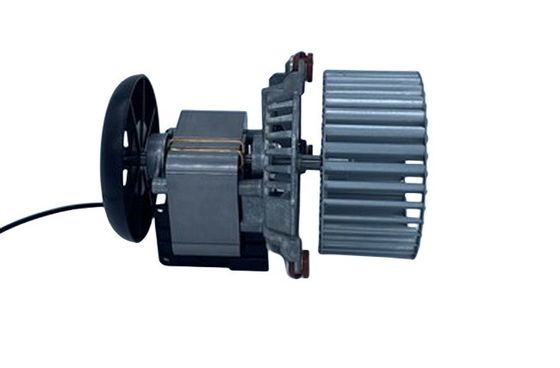

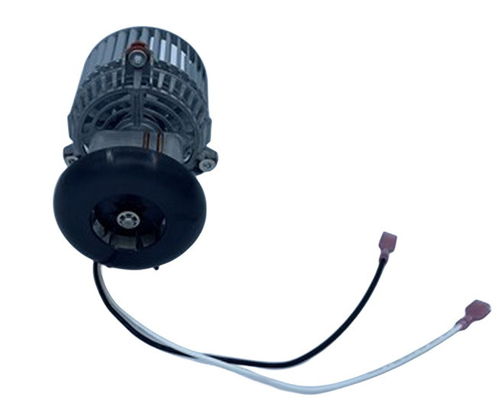

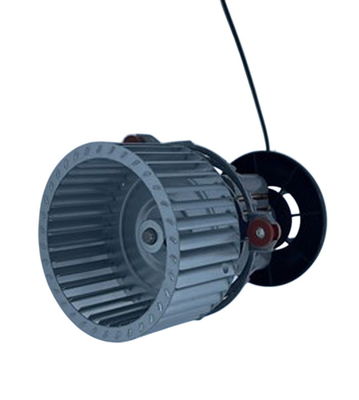

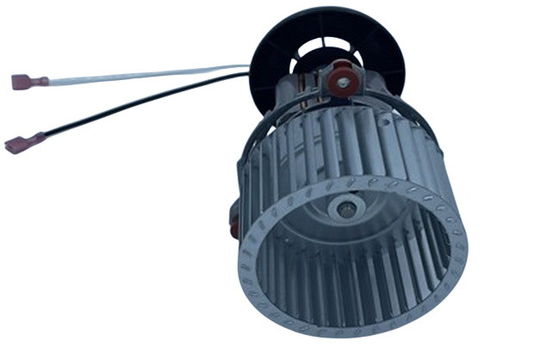

50W 0.75A High air volumn Pellet Stove hot air oven fan UL agency
This hot air pellet oven fan is designed to deliver a high volume of air, making it suitable for applications such as pellet stoves and hot air ovens, where air circulation and heat dissipation are important.
The oven fan is providing the necessary airflow to ensure efficient combustion and uniform distribution of hot air.
Quick Review:
| MH MODEL: | MH6035-35422 | Product Name: | 50W 0.75A High Air Volumn Pellet Stove Hot Air Oven Fan UL Agency |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60HZ | Current(A): | 0.75 |
| Input Power(W): | 50W | Speed(RPM): | 2800 |
| Hi-Pot TEST: | 1500Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | TP |
| Wind Speed(m/s): | 12 | Air Volume(CFM): | 130 |
| Application: | Stove; Pellet Stove | Agency: | UL |
Can be customized , please contact us to get more information!
Production Feature:
1. Be powered by C-frame shaded pole motor, high efficiency and large volume.
2. Quiet construction design.
3. Thermally Protected
4. Double cooling fan for the motor design, long lasting.
5. Improves fireplace efficiency, Helps reduce costly energy bills.
6. Can handle up to 500°F air in housing.
The main application:
Pellet stove oven or oven
The high-efficiency hot air circulation fan equipment which can quickly increase room temperature, improve thermal efficiency, and save energy. They are widely used in residential, commercial, and industrial environments, such as heating rooms, workshops, and large buildings.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
