Product Details:
|
| MH MODEL: | MH6019-19220 | Product Name: | 45W 0.4A AC Shaded Pole Motor For Room Heating Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current（A): | 0.4 |
| Input Power（W）: | 45W | Speed（RPM): | 1800 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Pellet Stove, LAB EQUIPMENT, OVEN |
| High Light: | Hot Air Oven Air ,Dual Heat Dissipation Fan Design, Circulation Oven Fan, Ac Shade Pole Motor ,230V 50HZ 45W 0.4A | ||
| High Light: | 45W Hot Air Oven Fan,0.4A Hot Air Oven Fan,heating oven fan 50Hz |
||

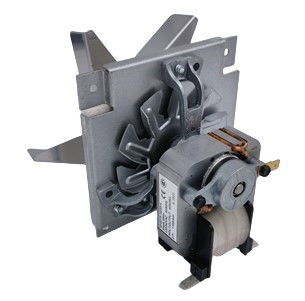

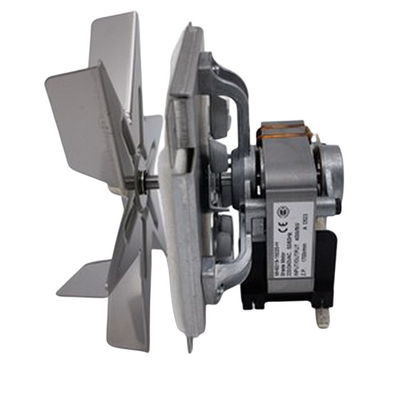

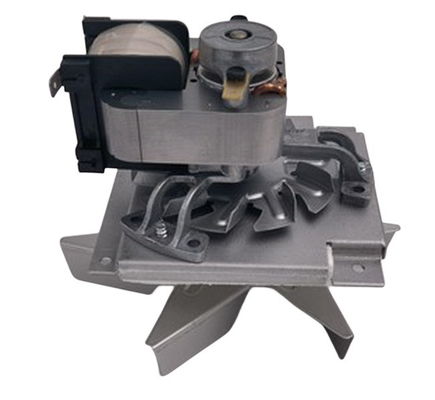

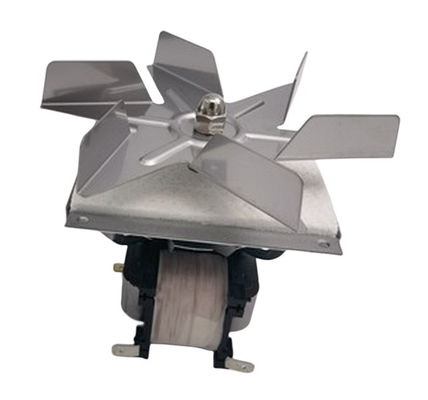

45W 0.4A AC shaded pole motor for room heating oven
this motor provides sufficient power and current to heat the air inside the oven. It ensures even heating of food, resulting in optimal cooking results. That is simple and reliable types of electric motors commonly used in various residential and commercial applications which allowing for continuous operation and stable performance.
Quick Review:
| MH MODEL: | MH6019-19220 | Product Name: | 45W 0.4A AC Shaded Pole Motor For Room Heating Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 230Vac/50Hz | Current(A): | 0.4 |
| Input Power(W): | 45W | Speed(RPM): | 1800 |
| Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Pellet Stove, LAB EQUIPMENT, OVEN |
Can be customized , please contact us to get more information
Production Feature:
1. Plug and play
2. Mature and reliable shaded pole motor technology
3. Heat-resistant fan made of stainless steel
4. Operating temperature range of 120 – 500℃
5. Motor assembly mounted on a metal disc outside the oven for easy installation
6. High-temperature resistant NMB ball bearing design
7. Independent thermal insulation design to enhance motor lifespan
Typical applications include:
1. Forced exhaust in pellet stoves.
2. Hot air circulation in air drying ovens.
3. Hot air circulation in ovens.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
