Product Details:
|
| MH MODEL: | MH6019-19010 | Product Name: | 2 Speed Hot Air Oven Fan Design-AC Shaded Pole Motor For Oven Or Lab Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 220/240Vac/50/60Hz | Current（A): | HIGH: 0.3 ;LOW:0.18 |
| Input Power（W）: | HIGH: 32 ;LOW:20 | Speed（RPM): | HIGH: 1300 ;LOW:900 |
| Hi-Pot TEST: | 1800vac50Hz,3mA,1S | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven, Lab Equipment |
| High Light: | Hot Air Oven Air ,2 Speed Hot Air Oven Fan Design-AC Shaded Pole Motor For Oven Or Lab Equipment | ||
| Highlight: | 2 Speed oven temperature fan,oven temperature fan 50Hz,hot air circulation fan 60Hz |
||

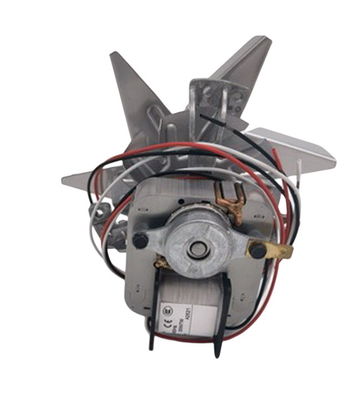

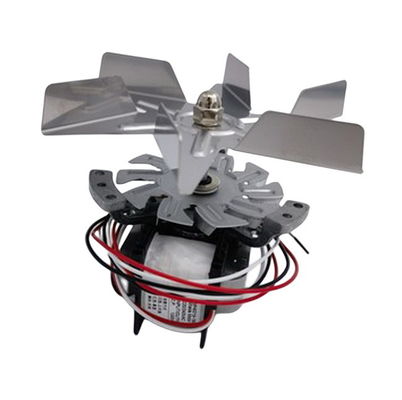

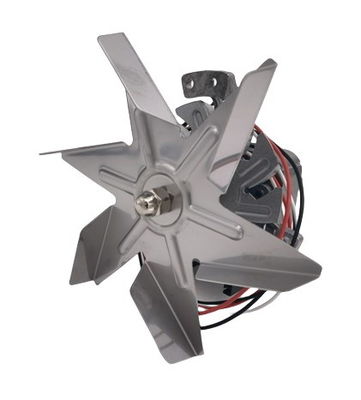

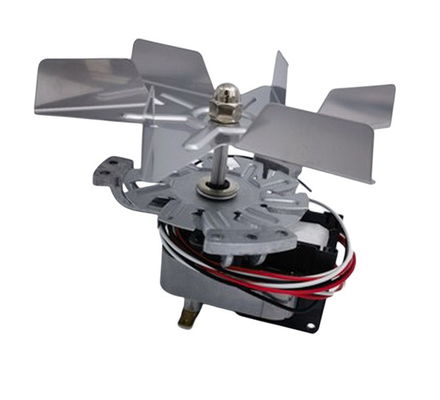

2 Speed hot air oven fan design-AC shaded pole motor for oven or lab equipment
Its purpose is to provide air circulation and heat distribution within the hot air oven or laboratory equipment. The fan functions by utilizing convection effects to evenly distribute hot air throughout the oven or equipment, improving temperature uniformity and heating efficiency.
This hot air oven fan is designed with the ability to adjust between two different speeds, allowing users to select the appropriate airflow velocity based on their needs. This design enables the fan to operate flexibly under different working conditions, catering to various requirements.
Quick Review:
| MH MODEL: | MH6019-19010 | Product Name: | 2 Speed Hot Air Oven Fan Design-AC Shaded Pole Motor For Oven Or Lab Equipment |
|---|---|---|---|
| Rated Voltage/Frequency: | 220/240Vac/50/60Hz | Current(A): | HIGH: 0.3 ;LOW:0.18 |
| Input Power(W): | HIGH: 32 ;LOW:20 | Speed(RPM): | HIGH: 1300 ;LOW:900 |
| Hi-Pot TEST: | 1800vac50Hz,3mA,1S | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protected: | ZP |
| Agency: | CE/CCC/ETL | Application: | Oven, Lab Equipment |
Can be customized , please contact us to get more information
Production Feature:
• Plug and play
• Proven and reliable shaded pole motor technology
• Heat-resistant fan made of hot-dip aluminum-coated steel or stainless steel
• Operating temperature range of 120 – 500℃
• Motor installed outside the casing to extend motor lifespan
• High-temperature resistant ball bearing design for low noise and long lifespan
• Motor self-cooling design
• Dual-speed design to accommodate different application environments.
The main appilication:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
