Product Details:
|
MH MODEL: | MH6029-29072 | Product Name: | Hot Air Fan High Temperature Shaded Pole Motor For Drying Box Oven |
---|---|---|---|
Rated Voltage/Frequency: | 220/230Vac 50/60Hz | Current(A): | HIGH: 0.37 ;LOW:0.25 |
Input Power(W): | HIGH: 42 ;LOW:30 | Speed(RPM): | HIGH: 1900 ;LOW:1100 |
Hi-Pot TEST: | 1800Vac,3mA,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Protected: | ZP |
Agency: | CE/CCC/ETL | Application: | LAB EQUIPMENT OVEN |
High Light: | Hot Air Oven Air ,2-speed ,Hot Air Fan ,High Temperature Shaded Pole Motor ,drying Box Oven | ||
High Light: | 2 Speed Hot Air Oven Fan,Hot Air Oven Fan High Temperature,universal oven fan motor CCC |

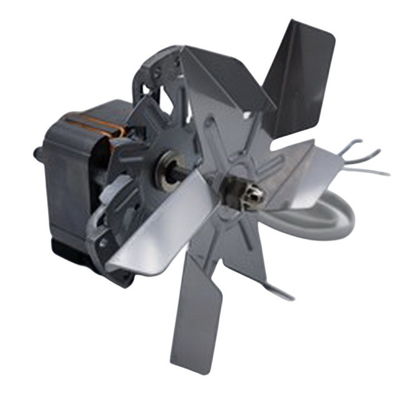

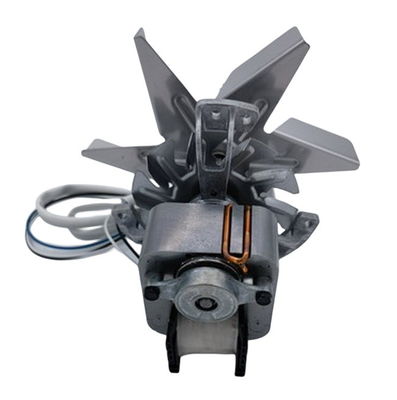

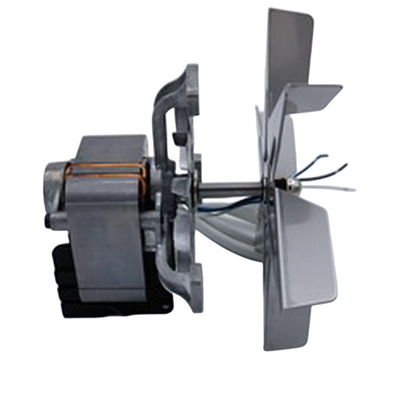

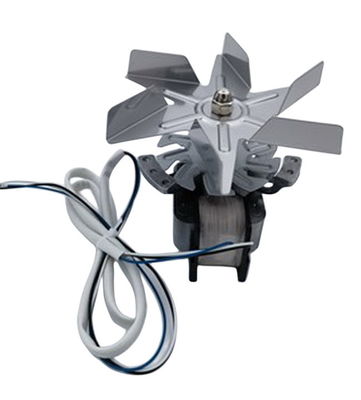

Hot air fan High Temperature shaded pole motor for drying box oven
AC 2-speed Hot air fan High Temperature shaded pole motor for drying box oven
Production Feature:
• Plug and play
• Mature and reliable mask motor technology
• Heat resistant fan made of hot dip aluminized steel, stainless steel
• Operating temperature covering 120-500 ℃
• The motor is installed outside the box to extend the service life of the motor.
• High temperature ball bearing design, low noise, long life.
• Motor self-cooling design.
• Extra long wire with high temperature casing protection, more safe and reliable.
Quick Review:
MH MODEL: | MH6029-29072 | Product Name: | Hot air fan High Temperature shaded pole motor for drying box oven |
Rated Voltage/Frequency: | 220/230Vac/50/60HZ | Current(A): | HIGH: 0.37 ;LOW:0.25 |
Input Power(W): | HIGH: 42 ;LOW:30 | Speed(RPM): | HIGH: 1900 ;LOW:1100 |
Hi-Pot TEST: | 1800Vac,50HZ, 3mA,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Protected: | ZP |
Agency: | CE/CCC/ETL | Application: | Oven; Lab Equipment |
High Light: | Hot Air Oven Air ,2-speed ,Hot air fan ,High Temperature shaded pole motor ,drying box oven | Feature | High Temperature |
Package:
The main appilication:
Air drying box, household oven
