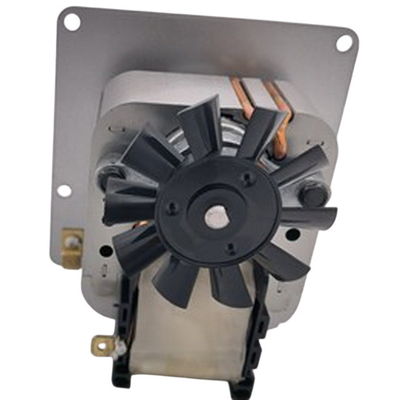

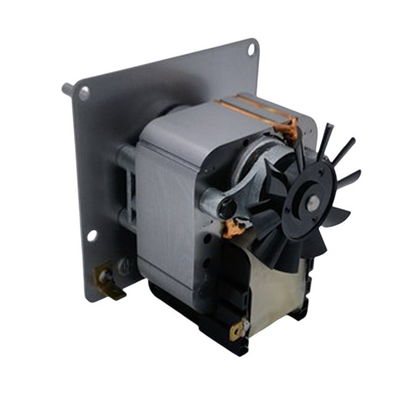

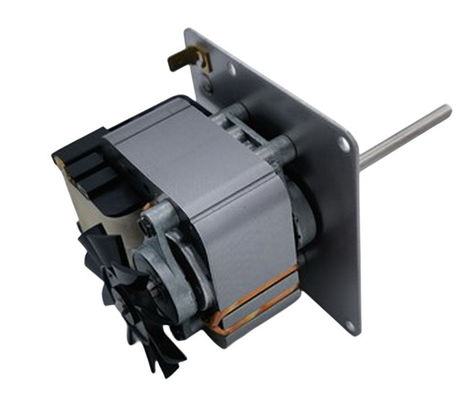

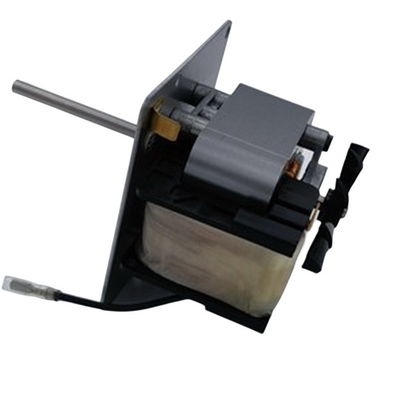

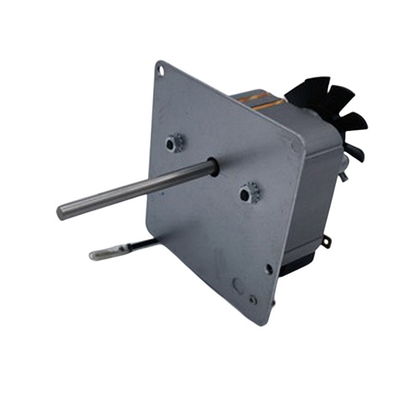

80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump

80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump
80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump

Large Image :  80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL/CE/CCC
Model Number: MH6029-29398
Payment & Shipping Terms:
Minimum Order Quantity: 480PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump

Description
Product Name: 80W 0.74A 2.38" C Frame Motor Shade Pole MH MODEL: MH6029-29398
Rated Voltage/Frequency: 230V50/60Hz Current(A): 0.74
Input Power(W): 80 Output Speed(RPM): 3000
Hi-Pot TEST: 1800vac50hz,3Ma,1s Bearing Type: Sleeve Bearing
Insulation Class: H Agency: ETL/CE/CCC
Application: Pellet Fireplace, Electric Heater Protect Method: TP
High Light:

80W C Frame Motors

,

0.74A C Frame Motors

,

shaded pole motor winding For Pump

China 80W 0.74A 2.38" C Frame Motor AC Single Phase Shade Pole for Pump



This motor is specifically designed for pump applications and operates on a single-phase AC power supply. With a power input of 80W and a current rating of 0.74A, it provides efficient and reliable performance which further enhances its functionality, allowing for smooth operation and reduced vibrations.



Specification:

Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
21.88(7/8) 110-120V/220-240V 50/60 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13



Note: Listed are representative only for reference, can be customized according to customer requirements



Performance Curve:

80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 0



Production Feature :



1. 2.38" C-FRAME MOTOR

2. Heavy-duty steel and die-cast construction

3. Several shaft size options

4. Several mounting options available

5. Several lead configurations available

6. Ball bearing or Sleeve bearing available



80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 1


Prodcution Package :



Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.


Main Appilication:

1. Air conditioning condensate pump

80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 2




2. Specialized motor for landscape water pumps



80W 0.74A 2.38" C Frame Motor AC Single Phase Shaded Pole Motor Winding For Pump 3







Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
