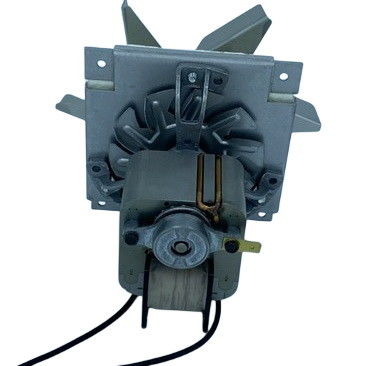

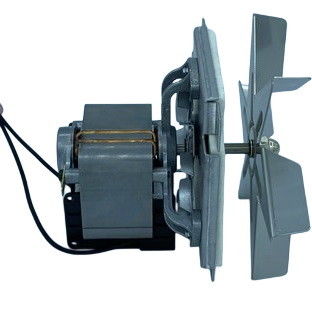

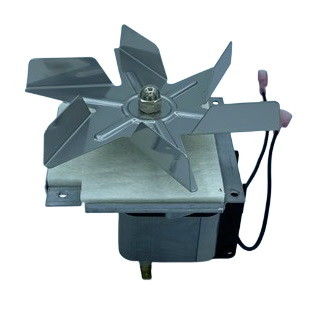

AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment

AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment
AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment

Large Image :  AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE/CCC
Model Number: MH6038-38380
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment

Description
MH MODEL: MH6038-38380 Product Name: AC220-240V 50W Shaded Pole Motor For Oven And Ventilation Equipment
Rated Voltage/Frequency: 220/240Vac/50/60Hz Current(A): 0.4
Input Power(W): 50W Speed(RPM): 2100
Hi-Pot TEST: 1800Vac,3mA,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Protected: ZP
Agency: CE/CCC Application: Oven, Pellet Stove, Lab Equipment
High Light: Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,220-240VV 50/60HZ 50W
High Light:

AC220V shaded pole induction motor

,

240V shaded pole induction motor

,

50W hot air circulation blower

AC220-240V 50W shaded pole motor for oven and ventilation equipment

This serial motors are applied in high speed and large air volume which can quickly achieve temperature balance inside the box.
It is typically applied in oven and hot air drying / ventilation equipment.


Technical Rating Data:



MH PN# Volt/Frq (Vac/Hz) Power (W) Current (A) Speed (RPM) Lamination length (mm) Bearing Fan Model Agency Incl.Cls
MH6019-19XXX 220-240V, 50/60Hz 42 ≤ 0.4 1800±100 19 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6029-29XXX 220-240V, 50/60Hz 50 ≤ 0.45 2300±150 29 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6035-35XXX 220-240V, 50/60Hz 55 ≤ 0.4 2100±150 35 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6038-38XXX 220-240V, 50/60Hz 55 ≤ 0.4 2300±150 38 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6019-19XXX 110-115V 50/60Hz 45 ≤ 0.9 1800±100 19 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6029-29XXX 110-115V 50/60Hz 55 ≤ 0.9 1800±100 29 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6035-35XXX 110-115V 50/60Hz 60 ≤ 0.75 2200±150 35 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6038-38XXX 110-115V 50/60Hz 75 ≤ 1.2 2400±150 38 NMB BALL BEARING Φ152*20mm UL/ETL H




AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment 0



Production Feature:



1.  High temperature wire connection, riveting standard 250 plastic shell protected quick terminals.
2.  Heat-resistant fan made of stainless steel by stamping.
3.  Heat-resistant ball bearings: NMB BALL BEARING.
4.  Assembled with metal plates and insulated cotton for dual insulation designcooling fan helps to reduce the operating temperature of the bearings and improve the product lifespan.
5.  With the dedicated bearing bracket, the motor can be installed outside the oven to prevent overheating of the blower or the           corresponding drive motor.
6.  Mature and reliable shaded pole motor technology, suitable for various high temperature environments.
7.  High-quality electrical steel and zinc die-casting structure ensure the stability of the product.



AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment 1




The main appilication:

oven and hot air drying / ventilation equipment.



AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment 2AC220 240V 50W Shaded Pole Induction Motor For Oven And Ventilation Equipment 3

Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
