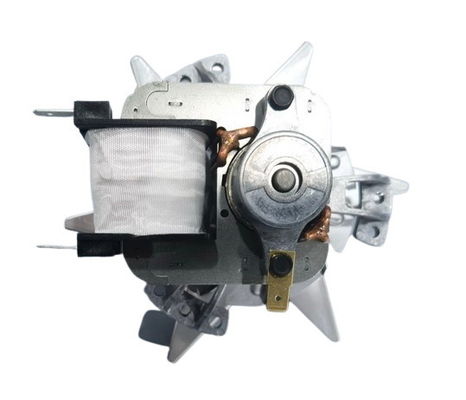

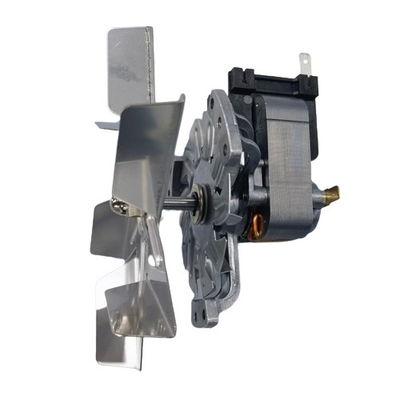

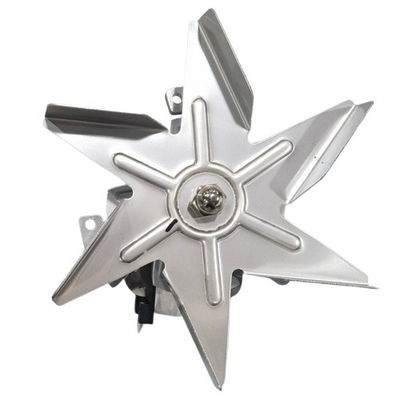

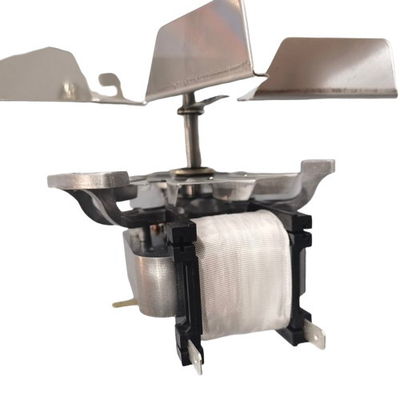

42W Hot Air Oven Fan Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

42W Hot Air Oven Fan Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ

42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ
42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ

Large Image :  42W Hot Air Oven Fan Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE/CCC
Model Number: MH6019-19074
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

42W Hot Air Oven Fan Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ

Description
Product Name: Hot Air Oven Fan Motor 230V 50HZ 42W Rated Voltage/Frequency: 230Vac/50Hz
Current(A): 0.4 Input Power(W): 42W
Speed(RPM): 1700±150 Hi-Pot TEST: 1800vac50hz,3Ma,1s
Bearing Type: NMB Ball Bearing Insulation Class: H (Z.P)
Agency: CE/CCC Application: Oven
High Light: Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,230V 50HZ 42W
High Light:

42W Hot Air Oven Fan

,

0.4A Hot Air Oven Fan

,

1700RPM air circulation fan for home

Hot Air Oven Air Circulation Oven Fan Ac Shade Pole Motor 230V 50HZ 42W



MH series of hot air convection blowers summary as below:



• Hot air convection blowers are designed for the special requirements in circulating hot air to operate within the high temperature zone;



• Several shaft size options;



• Basic design comprises a shaded pole motor;



• Special mounting plates available;



• Stainless steel, Galvanized steel, aluminized steel or die casting aluminum impeller available;



• Ball bearing or sleeve bearings with special lubricant deport for bearing temperature up to Max 200℃;•Application include: ovens, climate cabinets, sterilization equipment, meal and dish warmers and similar appliances.



• Hot air convection blowers are designed for the special requirements in circulating hot air to operate within the high temperature zone;



• Several shaft size options;



• Basic design comprises a shaded pole motor;



• Special mounting plates available;



• Stainless steel, Galvanized steel, aluminized steel or die casting aluminum impeller available;



• Ball bearing or sleeve bearings with special lubricant deport for bearing temperature up to Max 200℃;



• Application include: ovens, climate cabinets, sterilization equipment, meal and dish warmers and similar appliances.



Technical Rating Data



MH PN# Volt/Frq (Vac/Hz) Power (W) Current (A) Speed (RPM) A Dimension (mm) H Dimension (mm) L Dimension (mm) Bearing Fan Model Agency Incl.Cls
MH6019-19XXX 220/230V, 50/60Hz 42 ≤ 0.4 1800±100 15-65 19 60 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6029-29XXX 220/230V, 50/60Hz 50 ≤ 0.45 2300±150 15-80 29 70 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6035-35XXX 220/230V, 50/60Hz 55 ≤ 0.4 2100±150 15-80 35 76 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6038-38XXX 220/230V, 50/60Hz 55 ≤ 0.4 2300±150 15-80 38 78 NMB BALL BEARING Φ152*20mm CE/CCC/ETL H
MH6019-19XXX 115V 60Hz 45 ≤ 0.9 1800±100 15-80 19 60 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6029-29XXX 115V 60Hz 55 ≤ 0.9 1800±100 15-80 29 70 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6035-35XXX 115V 60Hz 60 ≤ 0.75 2200±150 15-80 35 76 NMB BALL BEARING Φ152*20mm UL/ETL H
MH6038-38XXX 115V 60Hz 75 ≤ 1.2 2400±150 15-80 38 78 NMB BALL BEARING Φ152*20mm UL/ETL H





42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 0



Production Advantage:



1. The ideal solution to achieve uniform box temperature



2. Plug and play



3. Mature and reliable hood motor technology



4. Heat-resistant fan made of hot-dip aluminized steel or stainless steel



5. Operating temperature range of 120-500°C



6. The motor is installed outside the oven



7. Ball bearings can be provided to meet special requirements


Due to the dedicated bearing bracket, the motor can be installed outside the oven to prevent overheating of the hot air blower or the corresponding drive motor. When used in vertical axis position and suspended fan impeller applications, the optional ball bearings can also ensure a longer service life.



Prodcution Drawing

42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 1



42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 2



The appilication:



42W Hot Air Oven Fan  Ac Shade Pole Motor Air Circulation Fan For Home 230V 50HZ 3



MH hot air air oven fan motors ensure that the temperature of each layer is uniform and the baking is better.

our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.





Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Hot Air Oven Shade Pole Fan Motor, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
